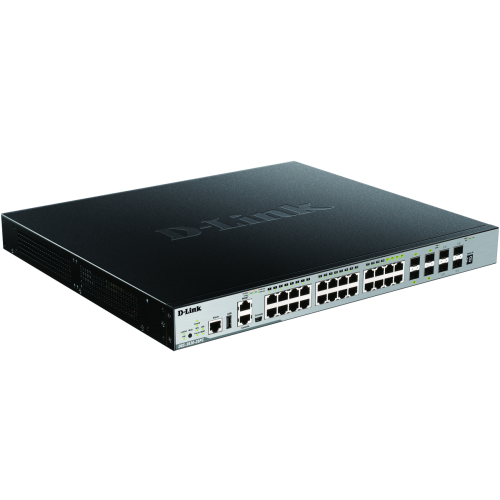

D-Link DGS-3630 series Gigabit Stackable Managed Switch
24 Gigabit LAN ports (PoE budget up to 740 W with optional DPS-700 power supply)
4x combo SFP port (shared with Gigabit LAN ports 21 to 24)
4x SFP+ port
Standard Image (SI)
Specificatii produs
-
Caracteristici generale
Tip SwitchRetea RJ45Numar Porturi20x RJ45
4x 1G RJ45/SFP combo
4x 10G SFP+ (uplink)Viteza Transfer LAN1 GbpsTehnologie de cablareRJ45 Base-T
Base-XManagementDaLayerLayer 3PoEDaPoE Budget370 WStandardeIEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1v, IEEE 802.1p, IEEE 802.1Qbb, IEEE 802.1x, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3af, IEEE 802.3atSecuritateSecure Shell v.2 (SSH2), TACACS+, RADIUS, SSL, TLS 1.0, TLS 1.1, MD5VLANs4000Tabela de adrese MAC68 KRutare IPIPv4: 16000
IPv6: 7000StackableDaCaracteristici speciale4MB packet buffer, 2 fans, Head of Line Blocking Prevention, Loop Guard, Link Aggregation, ERPS v2, port mirroring, VLAN mirroring, RSPAN, VLAN Double Tagging (Q-in-Q), VTP, GVRP, MLD snooping, IGMP snooping, PIM snooping, ARP support, Loopback, tunnelling, IGMP filtering, MLD filtering, QoS, SP, WRR queuing, PFC, bandwidth control, IP Precedence, DSCP support, SRTCM, TRTCM, ACL support, ToS, Energy Efficient Ethernet, Port Security, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Safeguard Engine, DHCP server, DAI, IP source guard, DHCP snooping, Duplicated Address Detection, packet filtering, BPDU, DoS attack prevention, AAA, 802.1x authentication, host based access control, WAC, Cable Diagnostics Function, Dying Gasp support, DDM, NTP, PTP, SNMP trap, TFTP client, LLDP support, DHCP client, SRM, sFlow, VRF-Lite, SSM, MIB IIConectori1 x USB 2.0 Tip A
1 x RJ45 port alarma
1 x RJ45 port management
1 x RJ45 port consola
1 x Mini-USB port consolaMontare in rackDa, 1UMemorie Buffer4 MBForwarding rate95.24 MppsSwitch capacity128 GbpsProtocoale de rutareMLD, MLDv2, IGMP, IGMPv2, IGMPv3, VRRPv2, VRRPv3, policy-based routing (PBR), Bidirectional Forwarding Detection (BFD), static IPv4 routing, static IPv6 routing, VRRP, RIP-1, RIP-2, RIPng, URPF, BGP-4, BGP-4+, OSPFv2, OSPFv3, DVMRPv3, PIM-DM, PIM-SM, PIM-SSM, MSDP, MPLSRemote Management ProtocolHTTPS, CLI, Telnet, SNMP 1, SNMP 2c, SNMP 3, TFTP, RMON 1, RMON 2, RMON 3, RMON 9Disipare caldura1600.31 BTU/hTensiune de intrare100 - 240 VAC, 50/60 HzAlimentareSursa internaPutere consumata (W)Cu PoE Max: 469.3 W
Fara PoE Max: 44.3 W
Standby: 30.1 WNivel zgomot48.2 dBADimensiuni441 x 380 x 44 mmGreutate5.88 kgAlteleStandard Image (SI) - Nu include cablu Stacking si cardul USB flash!
